3.10 Tables

Cross reference tables

Using bookdown cmd: \@ref(tab:chunk-label).

Note that you must provide caption option in knitr::kable(). Otherwise the table won’t be numbered.

And see Table \@ref(tab:mtcars).

```{r mtcars, echo=FALSE}
knitr::kable(mtcars[1:5, 1:5], caption = "The mtcars data.")
```

Refer to the Table 3.1.

Table 3.1: The mtcars data.
mpg cyl disp hp drat
Mazda RX4 21.0 6 160 110 3.90
Mazda RX4 Wag 21.0 6 160 110 3.90
Datsun 710 22.8 4 108 93 3.85
Hornet 4 Drive 21.4 6 258 110 3.08
Hornet Sportabout 18.7 8 360 175 3.15

knitr::kable(x, format="pipe") is useful when you want to copy-and-paste R output from console to other document, e.g., markdown.

knitr::kable(mtcars[1:5, 1:5], format = "pipe")
|                  |  mpg| cyl| disp|  hp| drat|
|:-----------------|----:|---:|----:|---:|----:|
|Mazda RX4         | 21.0|   6|  160| 110| 3.90|
|Mazda RX4 Wag     | 21.0|   6|  160| 110| 3.90|
|Datsun 710        | 22.8|   4|  108|  93| 3.85|
|Hornet 4 Drive    | 21.4|   6|  258| 110| 3.08|
|Hornet Sportabout | 18.7|   8|  360| 175| 3.15|

3.10.1 knitr::kable

knitr::kable(x, digits, caption=NULL, escape=TRUE) Create tables in LaTeX, HTML, Markdown and reStructuredText.

  • caption The table caption. In order to number the table, mut specify the caption argument.

  • format Possible values are latex, html, pipe (Pandoc’s pipe tables), simple (Pandoc’s simple tables), rst, and jira.

    The value of this argument will be automatically determined if the function is called within a knitr document.

  • digits Maximum number of digits for numeric columns, passed to round().

  • col.names Rename columns.

  • escape=TRUE Whether to escape special characters when producing HTML or LaTeX tables. Default is TRUE, special characters will either be escaped or substituted. For example, $ is escaped as \$, _ is escaped as \_, and \ is substituted with \textbackslash{}

    • When set to FALSE, you have to make sure yourself that special characters will not trigger syntax errors in LaTeX or HTML.
    • Common special LaTeX characters include #, %, &, {, and }. Common special HTML characters include &, <, >, and ". You need to be cautious when generating tables with escape = FALSE, and make sure you are using the special characters in the right way. It is a very common mistake to use escape = FALSE and include % or _ in column names or the caption of a LaTeX table without realizing that they are special.

  • align Column alignment: a character vector consisting of 'l' (left), 'c' (center) and/or 'r' (right).

    • By default or if align = NULL, numeric columns are right-aligned, and other columns are left-aligned.
    • If only one character is provided, that will apply to all columns.
    • If a vector is provided, will map to each individual column specifically.

  • Missing values (NA) in the table are displayed as NA by default. If you want to display them with other characters, you can set the option knitr.kable.NA, e.g. options(knitr.kable.NA = '') in the YAML to hide NA values.

  • booktabs = TRUE use the booktabs package

    • linesep = "" remove the extra space after every five rows in kable output (with booktabs option)
# For Markdown tables, use `pipe` format
> knitr::kable(head(mtcars[, 1:4]), format = "pipe")
|                  |  mpg| cyl| disp|  hp|
|:-----------------|----:|---:|----:|---:|
|Mazda RX4         | 21.0|   6|  160| 110|
|Mazda RX4 Wag     | 21.0|   6|  160| 110|
|Datsun 710        | 22.8|   4|  108|  93|
|Hornet 4 Drive    | 21.4|   6|  258| 110|
|Hornet Sportabout | 18.7|   8|  360| 175|
|Valiant           | 18.1|   6|  225| 105|

# For Plain tables in txt, `simple` is useful
> knitr::kable(head(mtcars[, 1:4]), format = "simple")
                      mpg   cyl   disp    hp
------------------  -----  ----  -----  ----
Mazda RX4            21.0     6    160   110
Mazda RX4 Wag        21.0     6    160   110
Datsun 710           22.8     4    108    93
Hornet 4 Drive       21.4     6    258   110
Hornet Sportabout    18.7     8    360   175
Valiant              18.1     6    225   105

3.10.2 Data frame printing

To show the tibble information (number of row/columns, and group information) along with paged output, we can write a custom function by modifying the print.paged_df function (which is used internally by rmarkdown for the df_print feature) and use CSS to nicely format the output.

https://stackoverflow.com/a/76014674/10108921

Paged df

---
title: "Use caption with df_print set to page"
date: "2025-06-17"
output:
  bookdown::html_document2:
    df_print: paged
---

When the df_print option is set to paged, tables are printed as HTML tables with support for pagination over rows and columns.

The possible values of the df_print option for the html_document format.

Option Description
default Call the print.data.frame generic method; console output prefixed by ##;
kable Use the knitr::kable function; looks nice but with no navigation for rows and columns, neither column types.
tibble Use the tibble::print.tbl_df function, this provides groups and counts of rows and columns info as if printing a tibble.
paged Use rmarkdown::paged_table to create a pageable table; paged looks best but slows down compilation significantly;
A custom function Use the function to create the table

The possible values of the df_print option for the pdf_document format: default, kable, tibble, paged, or a custom function.

paged print

```{r echo=TRUE, paged.print=TRUE}
ggplot2::diamonds
```

default output

```{r echo=TRUE, paged.print=FALSE}
ggplot2::diamonds
```

kable output

```{r echo=TRUE}
knitr::kable(ggplot2::diamonds[1:10, ])
```

df printing

Note that kable output doesn’t provide tibble information.

Available options for paged tables:

Option Description
max.print The number of rows to print.
rows.print The number of rows to display.
cols.print The number of columns to display.
cols.min.print The minimum number of columns to display.
pages.print The number of pages to display under page navigation.
paged.print When set to FALSE turns off paged tables.
rownames.print When set to FALSE turns off row names.

These options are specified in each chunk like below:

```{r cols.print=3, rows.print=3}
mtcars
```

For pdf_document, it is possible to write LaTex code directly.

```{=latex}
\begin{tabular}{ll}
A & B \\
A & B \\
\end{tabular}
```

Do not forget the equal sign before latex, i.e., it is =latex instead of latex.

3.10.3 Stargazer

stargazer print nice tables in Rmd documents and R scripts:

  • Passing a data frame to stargazer package creates a summary statistic table.

  • Passing a regression object creates a nice regression table.

  • Support tables output in multiple formats: text, latex, and html.

    • In R scripts, use type = "text" for a quick view of results.

  • stargaer does NOT work with anova table, use pander::pander instead.

Text table

Specify stargazer(type = "text")

```{r descrptive-analysis-text, comment = ''}
apply(data[,-1], 2, get_stat) %>%
    stargazer(type = "text", digits=2)
```

The text output looks like the following.

===============================================
                        Dependent variable:
                    ---------------------------
                            delta_infl
-----------------------------------------------
unemp                         -0.091
                              (0.126)

Constant                       0.518
                              (0.743)

-----------------------------------------------
Observations                    203
R2                             0.003
Adjusted R2                   -0.002
Residual Std. Error      2.833 (df = 201)
F Statistic             0.517 (df = 1; 201)
===============================================
Note:               *p<0.1; **p<0.05; ***p<0.01

By default, stargazer uses ***, **, and * to denote statistical significance at the one, five, and ten percent levels (* p<0.1; ** p<0.05; *** p<0.01). In contrast, summary.lm uses * p<0.05, ** p<0.01, *** p< 0.001.

You can change the cutoffs for significance using star.cutoffs = c(0.05, 0.01, 0.001).

There is one empty line after each coefficient, to remove the empty lines, specify no.space = TRUE.

The regression table with all empty lines removed:

===============================================
                        Dependent variable:
                    ---------------------------
                            delta_infl
-----------------------------------------------
unemp                         -0.091
                              (0.126)
Constant                       0.518
                              (0.743)
-----------------------------------------------
Observations                    203
R2                             0.003
Adjusted R2                   -0.002
Residual Std. Error      2.833 (df = 201)
F Statistic             0.517 (df = 1; 201)
===============================================
Note:               *p<0.1; **p<0.05; ***p<0.01

HTML table

Note that you need to specify results="asis" in the chunk options. This option tells knitr to treat verbatim code blocks “as is.” Otherwise, instead of your table, you will see the raw html or latex code.

  • Note that *’s do not show properly in html output, see Fig. 3.9, need to specify in the footnote (notes) manually.
Failed to show significance codes.

Figure 3.9: Failed to show significance codes.

Use the following code to display the correct significance symbols. See Fig. 3.10 for the expected output.

```{r descrptive-analysis-html, results="asis"}
apply(data[,-1], 2, get_stat) %>%
    stargazer(type = "html", digits=2,
              notes = "<span>&#42;</span>: p<0.1; <span>&#42;&#42;</span>: <strong>p<0.05</strong>; <span>&#42;&#42;&#42;</span>: p<0.01 <br> Standard errors in parentheses.",
              notes.append = F)
```

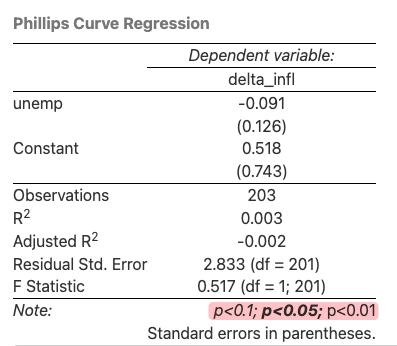

Correct significance codes.

Figure 3.10: Correct significance codes.

Common arguments:

  • type specify output table format. Possible values: latex (default for latex code), html, and text. Need to specify to html in html outputs.

  • digits an integer that indicates how many decimal places should be used. A value of NULL indicates that no rounding should be done at all, and that all available decimal places should be reported. Defaults to 3 digits.

  • notes a character vector containing notes to be included below the table.

  • notes.append = FALSE a logical value that indicates whether notes should be appended to the existing standard note(s) associated with the table’s style (typically an explanation of significance cutoffs).

    • Defaults to TRUE.
    • If the argument’s value is set to FALSE, the character strings provided in notes will replace any existing/default notes.

  • notes.align "l" for left alignment, "r" for right alignment, and "c" for centering. This argument is not case-sensitive.

  • single.row = TRUE to put coefficients and standard errors on same line

  • no.space = TRUE to remove the spaces after each line of coefficients

  • font.size = "small" to make font size smaller

  • column.labels a character vector of labels for columns in regression tables.

    This is useful to denote different regressions, informing the name/nature of the model, instead of using numers to identify them.

  • column.separate a numeric vector that specifies how column.labels should be laid out across regression table columns. A value of c(2, 1, 3), for instance, will apply the first label to the two first columns, the second label to the third column, and the third label will apply to the following three columns (i.e., columns number four, five and six).

  • dep.var.labels labels for dependent variables

  • covariate.labels labels for covariates in the regression tables.

    Can provide latex symbols in the labels, need to escape special symbols though.

    stargazer(mod_sel_lm_mtcars,
          covariate.labels =
          c("(Intercept)", "drat", "hp", "$w_{i}$",
            "\\textit{k}", "logLik", "AICc", "\\Delta AICc"))

  • add.lines add a row(s), such as reporting fixed effects.

    stargazer(output, output2, type = "html",
          add.lines = list(
            c("Fixed effects?", "No", "No"),
            c("Results believable?", "Maybe", "Try again later")
            )
          )

Add a blank line under the stargazer table: &nbsp; with a blank line above and below.

Cross reference stargazer tables.

  • In pdf output, use Table \@ref(tab:reg-table) or Table \ref{tab:reg-table}.

    Table \@ref(tab:reg-table) summarize the regression results in a table.

```{r, include=TRUE, results='asis'}
stargazer(capm_ml, FF_ml, type='latex', header=FALSE,
          digits=4, no.space = TRUE,
          title="Regression Results for META",
          label = "tab:reg-table")
```

    • header=FALSE is to suppress the % Table created by stargazer header. This applies to only latex tables.

    • label="tab:reg-table" is to specify the cross reference label for the table.

    • table.placement = "H" set float to H to fix positions. Places the float at precisely the location in the code. This requires the float LaTeX package. Remember to load it in the YAML.

      • Defaults to "!htbp".

        The htbp controls where the table or figure is placed. Tables and figures do not need to go where you put them in the text. LATEX moves them around to prevent large areas of white space from appearing in your paper. h (Here): Place the float here, i.e., approximately at the same point it occurs in the source text (however, not exactly at the spot) t (Top): Place the table at the top of the current page b (Bottom): Place the table at the bottom of the current page. p (Page): Place the table at the top of the next page. !: Override internal parameters LaTeX uses for determining “good” float positions.

    • align = FALSE a logical value indicating whether numeric values in the same column should be aligned at the decimal mark in LaTeX output.

  • In html output, cross references to stargazer tables are not so straightforward.

    label option in stargazer does not work. Cannot use chunk labels either.

    ```{r fit-age, echo=FALSE, results='asis', fig.cap="Logistic regression of CHD on age."}
# Use title caption from fig.cap
tit <- knitr::opts_current$get("fig.cap")
# Adding caption for html output
tit_html <- paste0('<span id="tab:',
                   knitr::opts_current$get("label"),
                   '">(#tab:',
                   knitr::opts_current$get("label"),
                   ')</span>',
                   tit)
stargazer::stargazer(fit.age,
          label = paste0("tab:", knitr::opts_current$get("label")),
          title = ifelse(knitr::is_latex_output(), tit, tit_html),
          type = ifelse(knitr::is_latex_output(),"latex","html"),
          notes = "<span>&#42;</span>: p<0.1; <span>&#42;&#42;</span>: <strong>p<0.05</strong>; <span>&#42;&#42;&#42;</span>: p<0.01 <br> Standard errors in parentheses.",
          notes.append = F,
          header = F
          )
```

Here is another reference to stargazer Table \@ref(tab:fit-age).

    Don’t change things unless it is absolutely necessary. Run the code chunk before compiling the whole website. It gets slowly as the website gets larger.

    stargazer::stargazer() the :: is necessary, and header=F is necessary and should be place at the end, otherwise will have errors as follows.

    Error in `.stargazer.wrap()`:
! argument is missing, with no default
Backtrace:
 1. stargazer::stargazer(...)
 2. stargazer:::.stargazer.wrap(...)
Execution halted

Exited with status 1.

    Another example if you don’t need to add footnotes.

    ```{r mytable, results='asis', fig.cap="This is my table."}

# Use title caption from fig.cap
tit <- knitr::opts_current$get("fig.cap")

# Adding caption for html output
tit_html <- paste0('<span id="tab:',
                   knitr::opts_current$get("label"),
                   '">(#tab:',
                   knitr::opts_current$get("label"),
                   ')</span>',
                   tit)

stargazer::stargazer(fit.age,
                     label = paste0("tab:", knitr::opts_current$get("label")),
                     title = ifelse(knitr::is_latex_output(), tit, tit_html),
                     type = ifelse(knitr::is_latex_output(),"latex","html"),
                     header = F
                     )
```

Here is a reference to stargazer Table \@ref(tab:mytable).

Alignment of Stargazer Tables

  • In PDF, the tables will be in the center by default.

  • However, when working with HTML output, you need to add CSS styling to adjust the table.

References:

3.10.4 kableExtra

The kableExtra package is designed to extend the basic functionality of tables produced using knitr::kable().

kableExtra::kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)

  • bootstrap_options A character vector for bootstrap table options. Please see package vignette or visit the w3schools’ Bootstrap Page for more information. Possible options include basic, striped, bordered, hover, condensed, responsive and none.

    • striped alternating row colors
    • hover Use the :hover selector on tr (table row) to highlight table rows on mouse over.

  • full_width A TRUE or FALSE variable controlling whether the HTML table should have 100% the preferable format for full_width. If not specified,

    • TRUE for a HTML table , will have full width by default but
    • this option will be set to FALSE for a LaTeX table.

  • latex_options A character vector for LaTeX table options, i.e., won’t have effecs on html tables.

    Possible options:

    Arguments Meanings
    striped Add alternative row colors to the table. It will imports LaTeX package xcolor if enabled.
    scale_down useful for super wide table. It will automatically adjust the table to fit the page width.
    repeat_header only meaningful in a long table environment. It will let the header row repeat on every page in that long table.
    hold_position “hold” the floating table to the exact position. It is useful when the LaTeX table is contained in a table environment after you specified captions in kable(). It will force the table to stay in the position where it was created in the document.
    HOLD_position A stronger version of hold_position. Requires the float package and specifies ⁠[H]⁠.

Rows and columns can be grouped via the functions pack_rows() and add_header_above(), respectively.

scroll_box(width = "100%", height = "500px") let you create a fixed height table while making it scrollable. This function only works for html long tables.

# commonly used settings
table %>%
    knitr::kable(digits = 5) %>%
    kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE, latex_options="scale_down") %>%
    scroll_box(width = "100%", height = "500px")
# escape=TRUE, this makes your life easier, will output the table exactly as it is
result <- read_csv("~/Documents/GDP/data/reg_result/IFE_result.csv")
result %>%
  knitr::kable(digits = 5, escape=T) %>%
  kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE, latex_options="scale_down")
# escape=FALSE, have to specify escape by replace `*` to `\\\\*`
result <- read_csv("~/Documents/GDP/data/reg_result/IFE_result.csv")
result <- result %>%
  mutate(pval.symbol = gsub("[*]", "\\\\*", pval.symbol) )
result %>%
  knitr::kable(digits = 5, escape=FALSE) %>%
  kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE, latex_options="scale_down")

tables in pdf output

reg_data %>%
    select(Date, adjusted, eRi, rmrf) %>%
    head(10) %>%
    knitr::kable(digits = c(0,2,4,4), escape=T, format = "latex", booktabs = TRUE, linesep = "" ) %>%
    kable_styling(latex_options = c("striped"), full_width = FALSE, stripe_color = "gray!15")

knitr::kable() arguments

  • format = "latex" specifies the output format.

  • align = "l" specifies column alignment.

  • booktabs = TRUE is generally recommended for formatting LaTeX tables.

  • linesep = "" prevents default behavior of extra space every five rows.

kableExtra::kable_styling() arguments

  • position = "left" places table on left hand side of page.
  • latex_options = c("striped", "repeat_header") implements table striping with repeated headers for tables that span multiple pages.
  • stripe_color = "gray!15" species the stripe color using LaTeX color specification from the xcolor package - this specifies a mix of 15% gray and 85% white.

linebreak(x, align = "l", double_escape = F, linebreaker = "\n") Make linebreak in LaTeX Table cells.

  • align="l" Choose from “l”, “c” or “r”. Defaults to “l”.

Customize the looks for columns/rows

kableExtra::column_spec(kable_input) this function allows users to select a column and then specify its look.

row_spec() works similar with column_spec() but defines specifications for rows.

  • For the position of the target row, you don’t need to count in header rows or the group labeling rows.
  • row_spec(row = 0, align='c') specify format of the header row. Here I want to center align headers.

Add header rows to group columns

add_header_above(). The header variable is supposed to be a named character with the names as new column names and values as column span. For your convenience, if column span equals to 1, you can ignore the =1 part so the function below can be written as add_header_above(c("", "Group 1" = 2, "Group 2" = 2, "Group 3" = 2)).

kbl(dt) %>%
  kable_classic() %>%
  add_header_above(c(" " = 1, "Group 1" = 2, "Group 2" = 2, "Group 3" = 2))

group columns1

You can add another row of header on top.

Group rows

collapse_rows will put repeating cells in columns into multi-row cells. The vertical alignment of the cell is controlled by valign with default as “top”.

Not working for html output.

collapse_rows_dt <- data.frame(C1 = c(rep("a", 10), rep("b", 5)),
                 C2 = c(rep("c", 7), rep("d", 3), rep("c", 2), rep("d", 3)),
                 C3 = 1:15,
                 C4 = sample(c(0,1), 15, replace = TRUE))
kbl(collapse_rows_dt, align = "c") %>%
  kable_paper(full_width = F) %>%
  column_spec(1, bold = T) %>%
  collapse_rows(columns = 1:2, valign = "top")

group columns2

Empty string as column name in tibble: use setNames or attr

df <- tibble(" "=1)
setNames(df, "")
# # A tibble: 1 x 1
#      ``
#   <dbl>
# 1     1

attr(df, "names") <- c("")

footnote() add footnotes to tables. There are four notation systems in footnote, namely general (no prefix for footnotes), number, alphabet and symbol.

Math in rmd tables

knitr::kable(x, escape=TRUE)

  • escape=TRUE whether to escape special characters when producing HTML or LaTeX tables.
    • Defaults to TRUE.
    • When escape = FALSE, you have to make sure that special characters will not trigger syntax errors in LaTeX or HTML.

You need to escape \ passed into R code.

```{r, echo=FALSE}
library(knitr)

mathy.df <- data.frame(site = c("A", "B"),
                       b0 = c(3, 4),
                       BA = c(1, 2))

colnames(mathy.df) <- c("Site", "$\\beta_0$", "$\\beta_A$")

kable(mathy.df, escape=FALSE)
```

rmd table

It is possible to edit Latex table directly in Rmd.

  • Don’t enclose in $$.
  • Use \begin{table} and start your table data.
